Acma R250 8'-2" Power Harrow w/Double Seed Box Seeder & XW Packer Roller:
Efficient Single Pass Results!

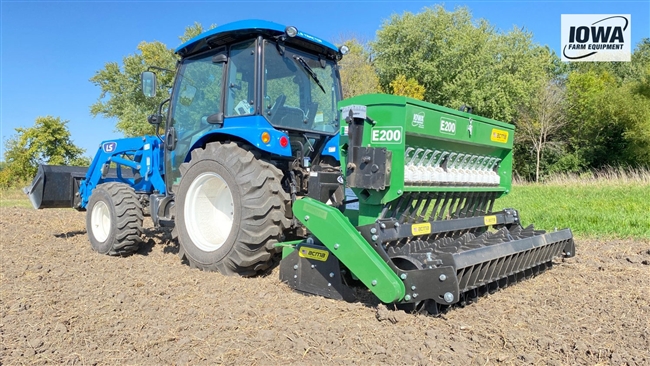

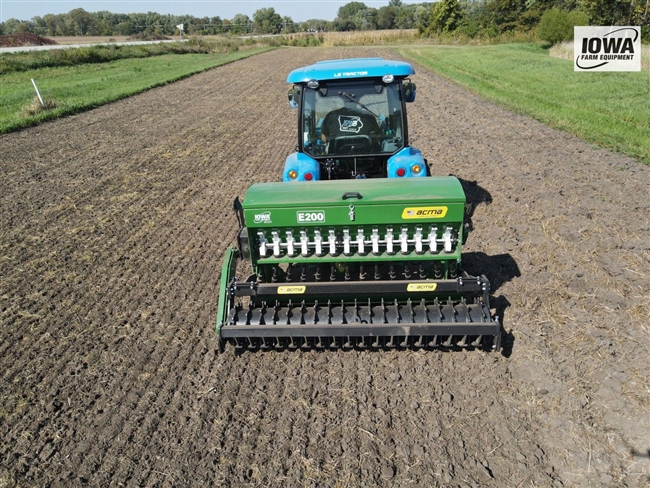

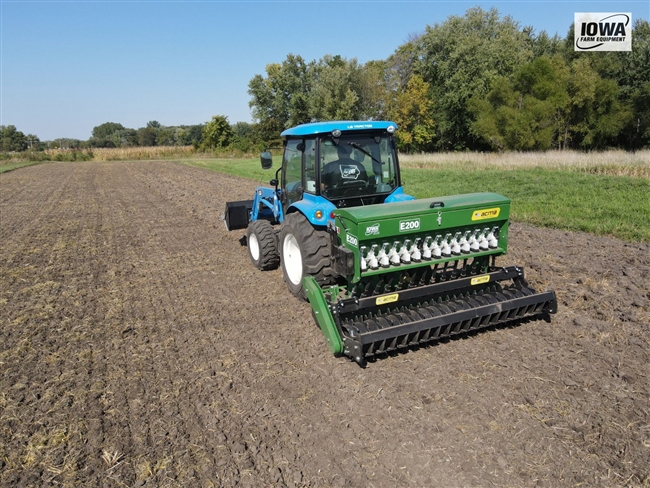

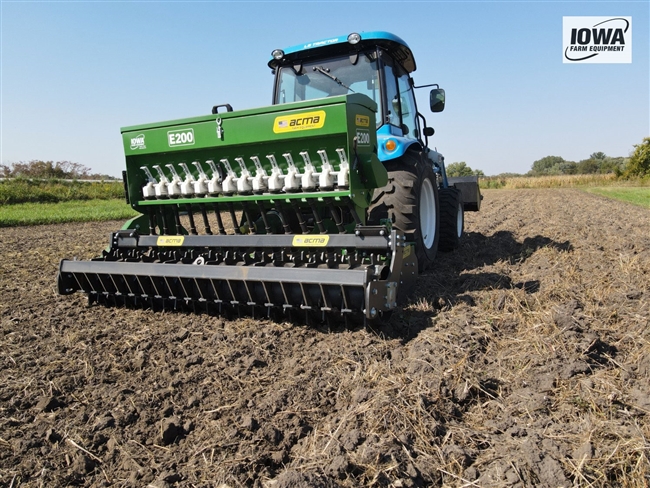

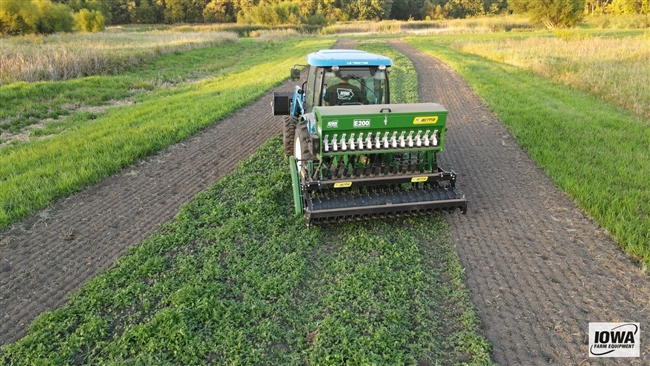

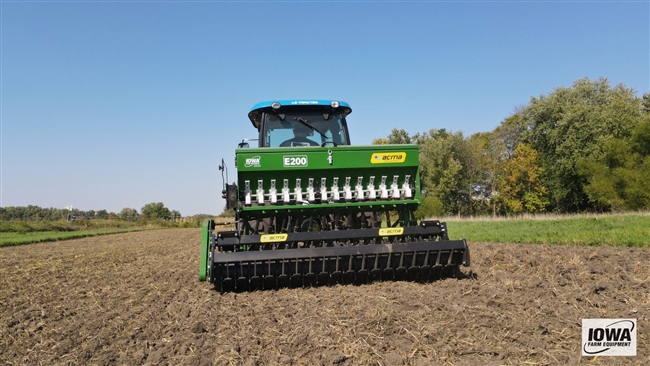

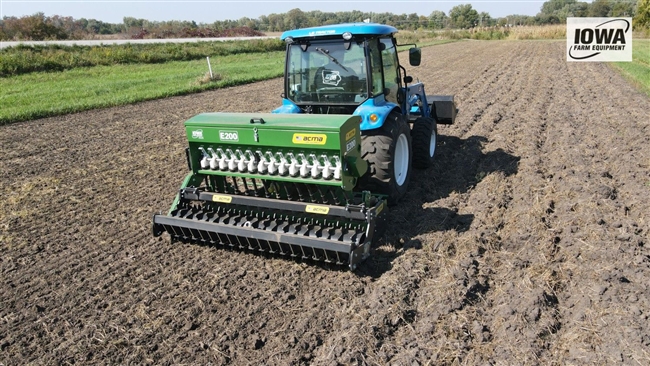

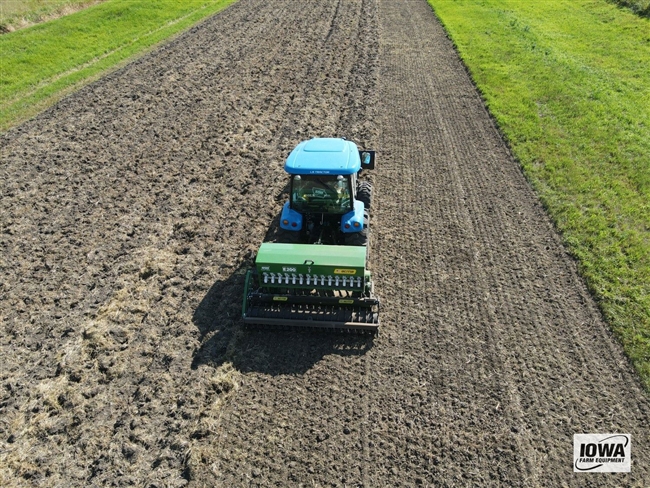

ACMA R250 Power Harrow w/Seeder & Packer Roller

More Views:


Our Price: $28,999.00


Availability:: Usually Ships in 2 to 4 Weeks

GENERAL FEATURES: SPECIFICATIONS:


Heavy Duty Professional Series, 8'-2" ACMA R250 Power Harrow With Dual Box Seeder & Hyd Controlled XW Packer Roller For 'On-The-Fly' Working Depth Control - Quick Hitch Compatible.

Expect This Power Harrow, Seeder & Roller Combo & ALL Of The Equipment We Sell To Be Quality Equipment That Will Serve You Well For A Lifetime And Provide A Good Resale Value Too!


GENERAL FEATURES:

POWER HARROW:
  • ACMA Power Harrows Always Have the Highest Population of Blades to Provide the Best Possible Soil Conditioning & to Reduce the Burden on Your Tractor!
  • Quick Hitch Compatible!
  • Heavy Duty Side Plates:
    • Vertically Adjustable to Reduce Resistance & Wear When Using in Deep Tillage Applications.
    • Laterally Hinged To Allow Rocks/Debris To Escape & Prevent Lodging & Spring Tensioned For Return.
  • 'On-The-Fly' Working Depth Adjustment With Hydraulically Adjusted XW (Extra-Wide) Packer Roller:
    • XW (Extra Wide) Packer Roller Eliminates Soil Ridges From Being Left Behind The Side Plates.
    • Packer Roller Also Provides Soil Conditioning.
  • Greaseable Top Rotor Hub Bearings, With Oil Bath Lubrication For Bottom Rotor Hub Bearings!
  • Easy Top Access Rotor Hubs.
  • 2 Blades Per (Round) Blade Carrier.
  • Heavy Duty Clevis Style Pull Arm Hitches.
  • Power Harrow Ships Complete Including a 540RPM, Shear Bolt Protected PTO Shaft!
SEEDER:
  • 19Bu Capacity: Primary Box @11Bu, Secondary Box @8Bu.
    • Dual Hopper Seed Box Eliminates the Need for a Second Pass When Planting Various Seed Sizes with Differing Flow Rates or Use Both Hoppers For Maximum Capacity!
      • Suitable For Most All Grass Seeds, From Alfalfa to Corn & Beans!
      • Hoppers Can Be Used For Granulated Fertilizers.
      • Built in Agitator Prevents Bridging, Ensures Consistent Flow Rate of Seeds, and Provides Some Blending of Mixed Seed Types.
        • Not Recommended For Warm Season Grass Seeds.
      • 28 Hopper Openings (14 from each box) Each Flow Thru a '4-Position Manual Slide Gate' For Each Opening, Then Into Individually Adjustable Seed Meters.
        • Slide Gates & Seed Metering Adjustments Are Tool Free Field Adjustable!
        • After Passing Thru the Seed Metering Devices, Seeds Flow Down the Drop Tubes (Secured to a Rigid 102" Channel) For Placement Onto the Beautiful Seedbed Made By the Power Harrow. Then the (Hydraulically Controlled) Packer Roller Follows to Ensure Excellent Ground Contact For Maximum Germination!
          • All This In One Efficient & Timely Pass!
      • To Adjust Drop Tube Spacing, Any of the Hopper Openings Can be Closed Tool Free With the '4-Position Slide Gate' at Each Opening.
      • Handle at End of Each Seed Hopper for Manually Opening or Closing Total Seed Flow (On/Off) at the Bottom of Each Individual Seed Hopper:
        • Handles Are At Opposite Ends; Right Side for Rear Box, Left Side For Front Box.
        • Handles For Speed Control For Seeding Rate Are Also on Opposite Ends for Each Box.
    • Mechanical Seed Level Indicators Are Adjustable and Visible To Tractor Operator.
