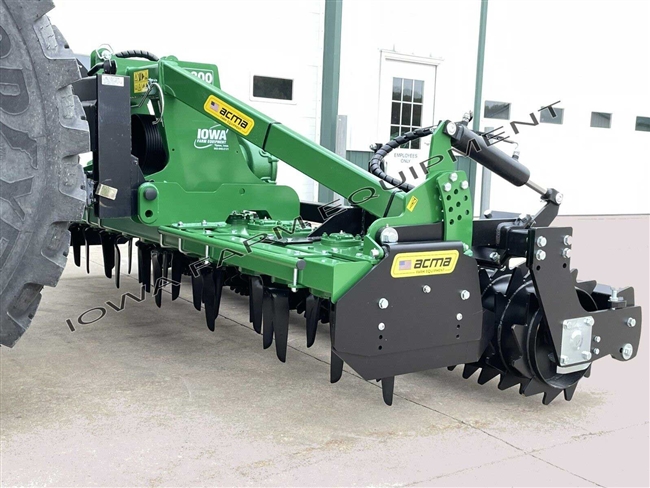

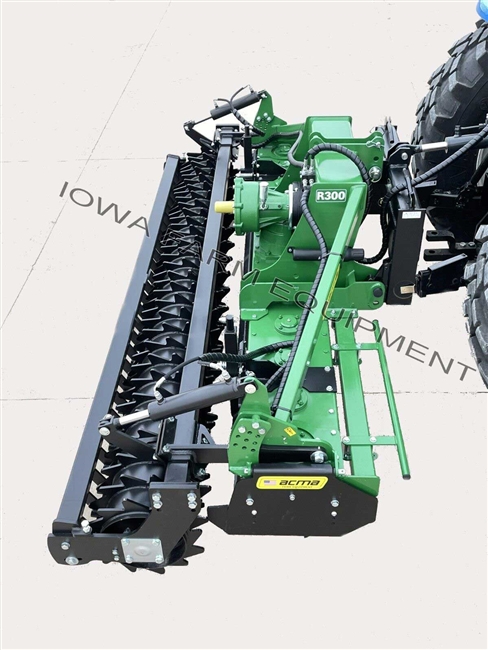

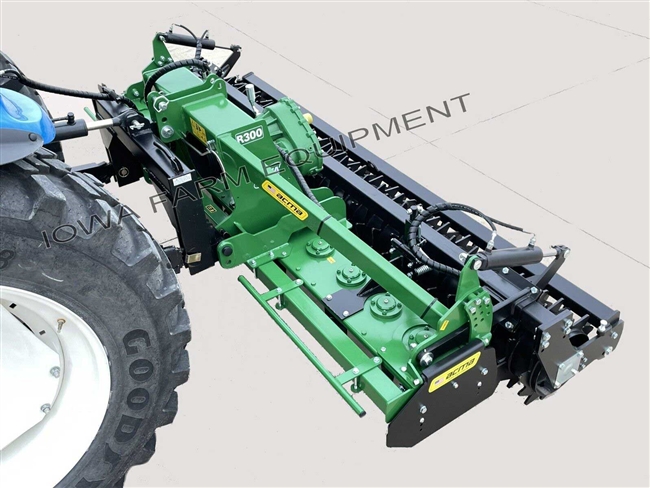

Heavy Duty Professional Series: ACMA R300, 10' Power Harrow & XW (Extra-Wide) Packer Roller With Hydraulic 'On-The-Fly' Working Depth Control.
Expect This Power Harrow & ALL Of The Equipment We Sell To Be Quality Equipment That Will Serve You Well For A Lifetime And Provide A Good Resale Value Too!
GENERAL FEATURES:
-
ACMA Power Harrows Always Have the Highest Population of Blades to Provide the Best Possible Soil Conditioning & to Reduce the Burden on Your Tractor!
-

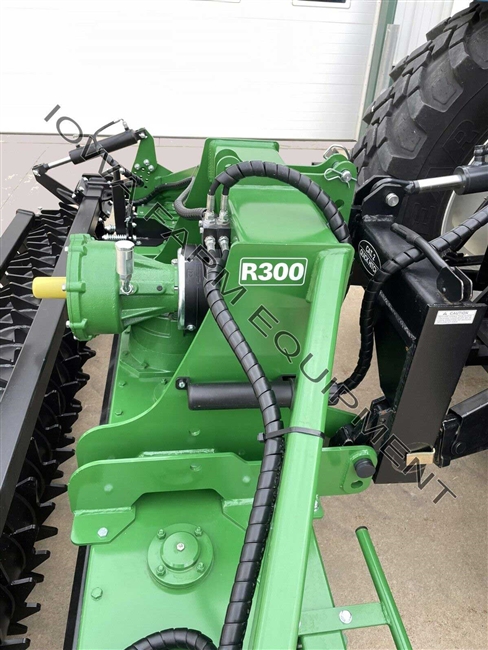

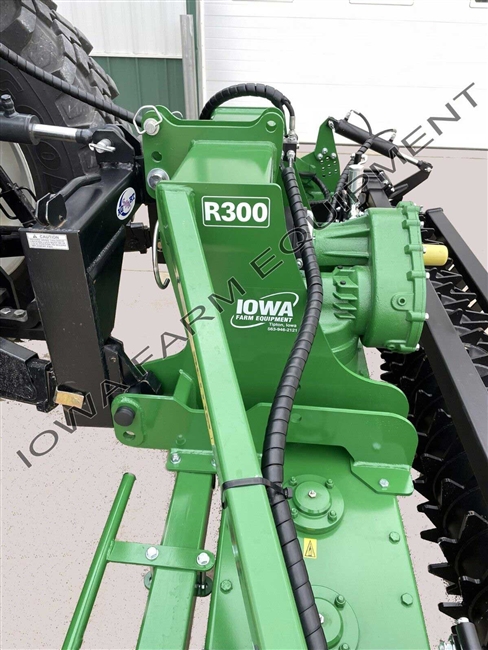

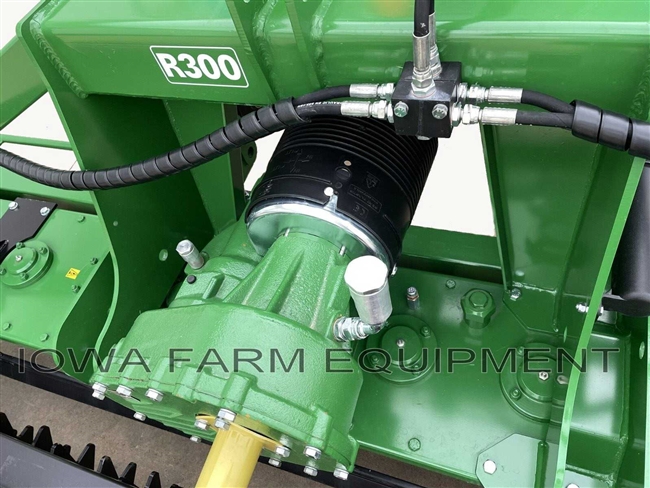

Multi-Speed Heavy Duty Gearbox Provides The Best Combination of Maximum Tractor Efficiency with The Best Single Pass Results!
-

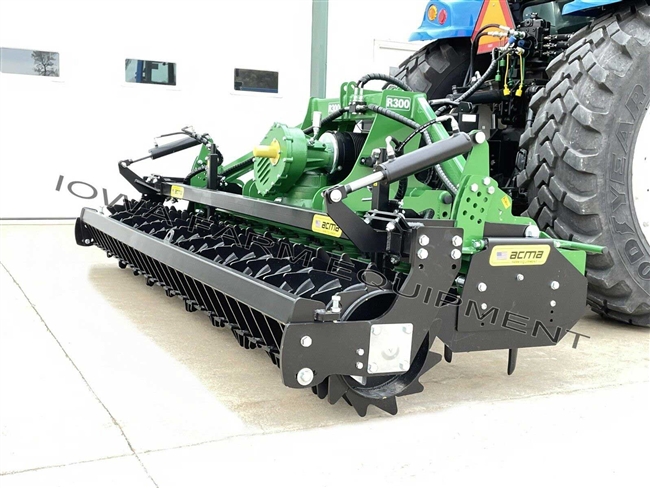

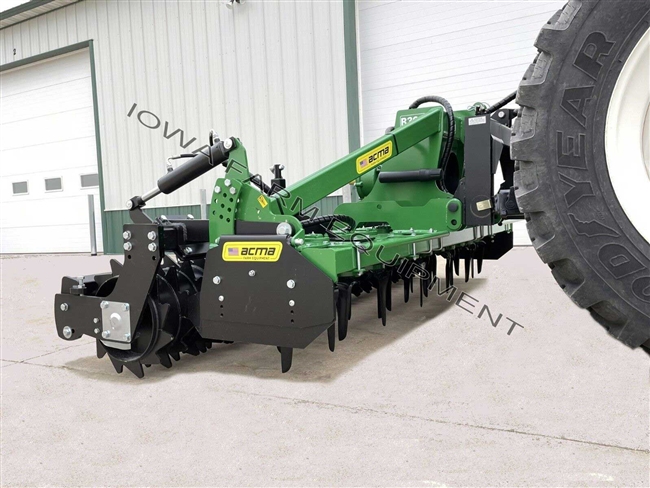

Heavy Duty Side Plates:
-
Vertically Adjustable to Reduce Resistance & Wear When Using in Deep Tillage Applications.
-
Laterally Hinged To Allow Rocks/Debris To Escape & Prevent Lodging & Spring Tensioned For Return.
-

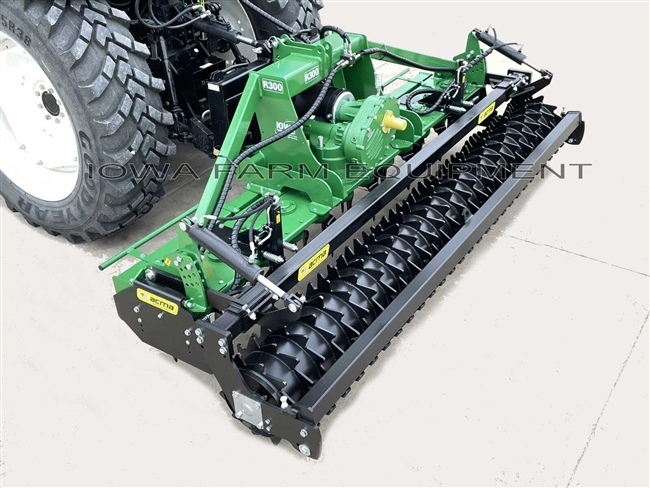

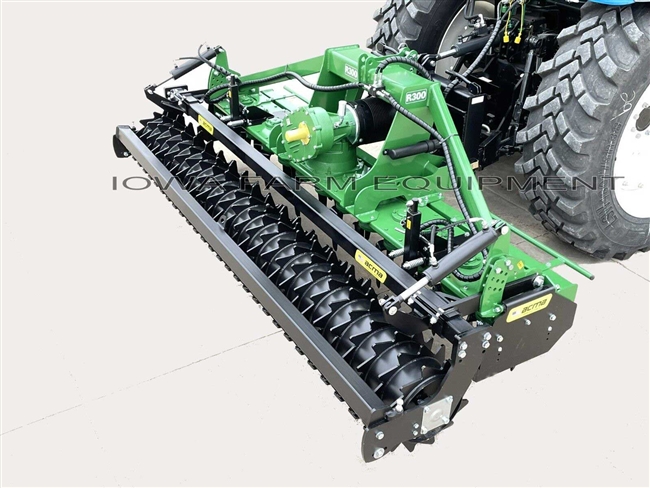

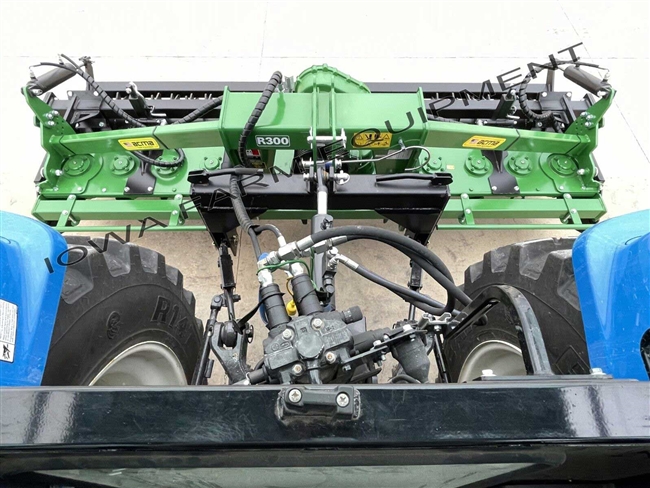

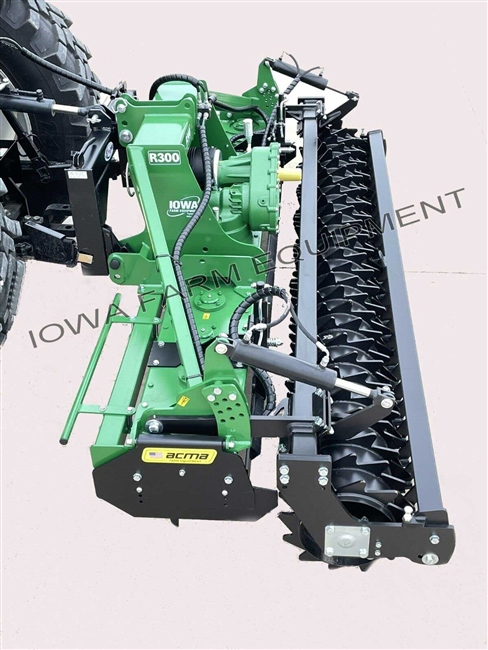

'On-The-Fly' Working Depth Adjustment With Hydraulically Adjusted XW (Extra-Wide) Packer Roller:
-

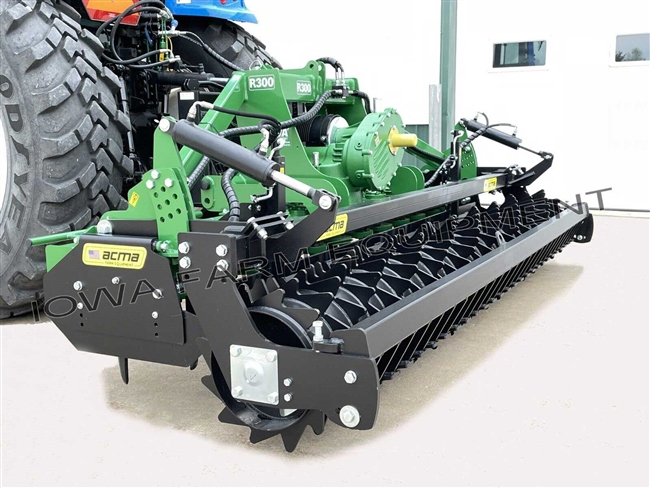

XW (Extra Wide) Packer Roller Eliminates Soil Ridges From Being Left Behind The Side Plates.
-
Packer Roller Also Provides Soil Conditioning.
-
Greaseable Top Rotor Hub Bearings, With Oil Bath Lubrication For Bottom Rotor Hub Bearings!
-
Easy Top Access Rotor Hubs.
-
2 Blades Per (Round) Blade Carrier.
-
Heavy Duty Clevis Style Pull Arm Hitches.
-

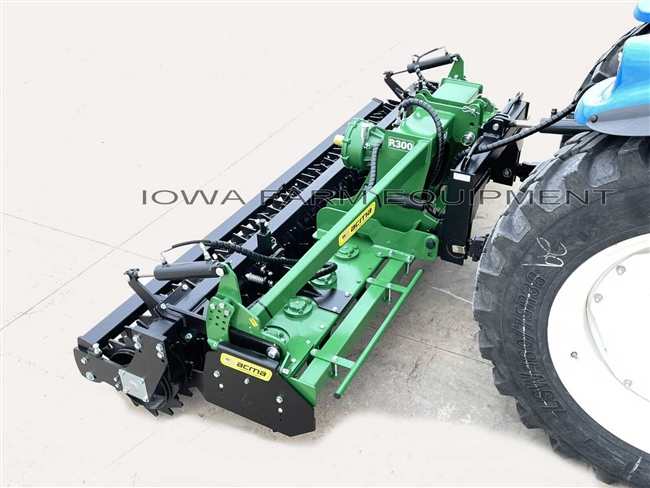

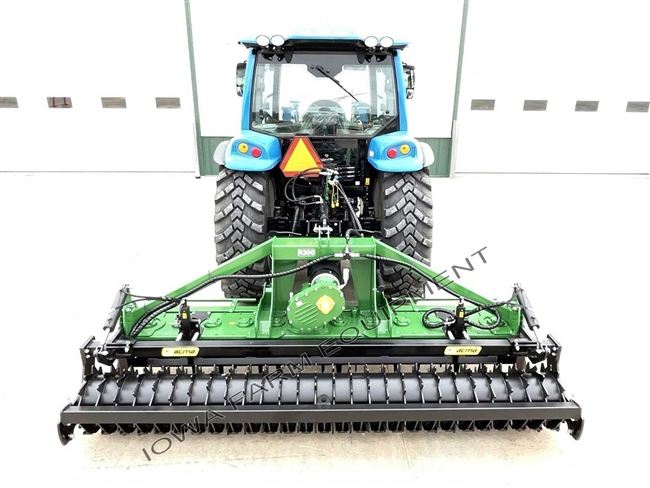

Sample Photos Show Tractor For Reference Only - Tractor Is Not Included!
-
Power Harrow Ships Complete Including a 540RPM, Shear Bolt Protected PTO Shaft!
-
Upgrade To 1000RPM Gearbox Available Separately.
-
Category 2, Quick Hitch Compatible, 3-Point Hitch.
-
540RPM Gearbox is Rated for 80 to 130PTO HP.
-
H.D. Gearbox Output Shaft is 1-3/4" x 6 Spline.
-
Blade Holder 'Rotor' Speed @323RPM's.
- 8 Gear Box Speeds @ 540RPM: 169, 182, 196, 210, 323, 348, 374 & 403.
-
4 Gear Box Speeds @ Optional 1000RPM: 312, 336, 362 & 389.
-
Tills a 10' Wide Path.
-
Overall Width is 10'-8".
-
Working Depth is 11"!
-

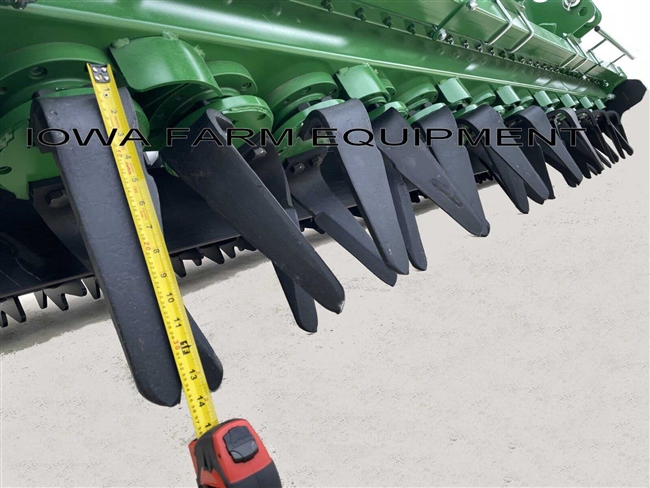

Power Harrow Has 12 Blade Holders with 2 Blades Per Holder for a Total of 24 Blades.
-
Weight: 3,033lb's (Less PTO Shaft, Pallet/Crating, etc.).
-
Specifications are based on manufacturer provided data & subject to change.
|
|
|
